    Q235 Grounding And Earthing Products Double Helix Lead Section Square Anchor

    Ask Lasest Price
    Brand Name : NTS
    Model Number : NTS293
    Certification : ISO9001 CE
    Price : as discussed
    Supply Ability : 50000per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Q235 Grounding And Earthing Products Double Helix Lead Section Square Anchor

    Ground Helical Piles for Transmission Tower

    Product Description

    Round Shaft Helical Piles


    • Square Bar shaft helical pier


      * Bar Material: 40Cr or 45# steel, round corner 5mm radius
      * Helix Plate material conforms to ASTM A36 hot rolled plate
      * helices thickness are available in 3/8” and 1/2” inch
      * All helix leading edges sharpened and rock cut and 45 degrees.
      * Corrosion protection to conform to ASTM A153 standard for hot dipped zinc coating
      * A better conventional solid steel extra high strength helical screw pile
      * Welded coupling for greater strength. Eliminates shaft heat damage caused by upset coupling process

      Note:We can accept OEM service.


      Specification
      sizeLead Length (ft)Helix Size (inch)Extension Length(ft)
      1-1/2"3ft/5ft/7ft8/10/12/143ft/5ft/7ft/10ft
      1-3/4"3ft/5ft/7ft8/10/12/143ft/5ft/7ft/10ft
      2"3ft/5ft/7ft/10ft8/10/12/153ft/5ft/7ft/10ft
      note:Other sizes are available upon request

      Q235 Grounding And Earthing Products Double Helix Lead Section Square AnchorQ235 Grounding And Earthing Products Double Helix Lead Section Square Anchor
    • Q235 Grounding And Earthing Products Double Helix Lead Section Square AnchorQ235 Grounding And Earthing Products Double Helix Lead Section Square Anchor


    Notes:OEM service is available, different materials and specifications can be customized according to your demands.



    • Q235 Grounding And Earthing Products Double Helix Lead Section Square AnchorQ235 Grounding And Earthing Products Double Helix Lead Section Square Anchor

      Helical Torque AnchorsTM may be the preferred solution for your foundation repair project due to these factors:

    • Ease of Installation
    • Little to No Vibration
    • Immediate Load Transfer upon Installation
    • Installed Torque Correlates to Capacity
    • Easily Load Tested to Verify Capacity
    • Installs Below Active Soils
    • Installation under any Weather Conditions
    • Little to No Disturbance to the Site

    Customizing is welcome!


    Advantages

    solar ground screw anchor is:offset eye helical anchor

    1. extremely environmentally friendly and economical, can be recycled.

    2. installed in a matter of minutes without digging and concrete.

    3. more efficiency, lower cost, low labor strength.

    4. operated precisely, flexible during drilling process.

    5. no negative effects on landscape, no damaging on surrounding area.

    6. long lifetime. Helical Soil Anchors

    7. subjected to strict quality assurance, approved by LGA in Germany.

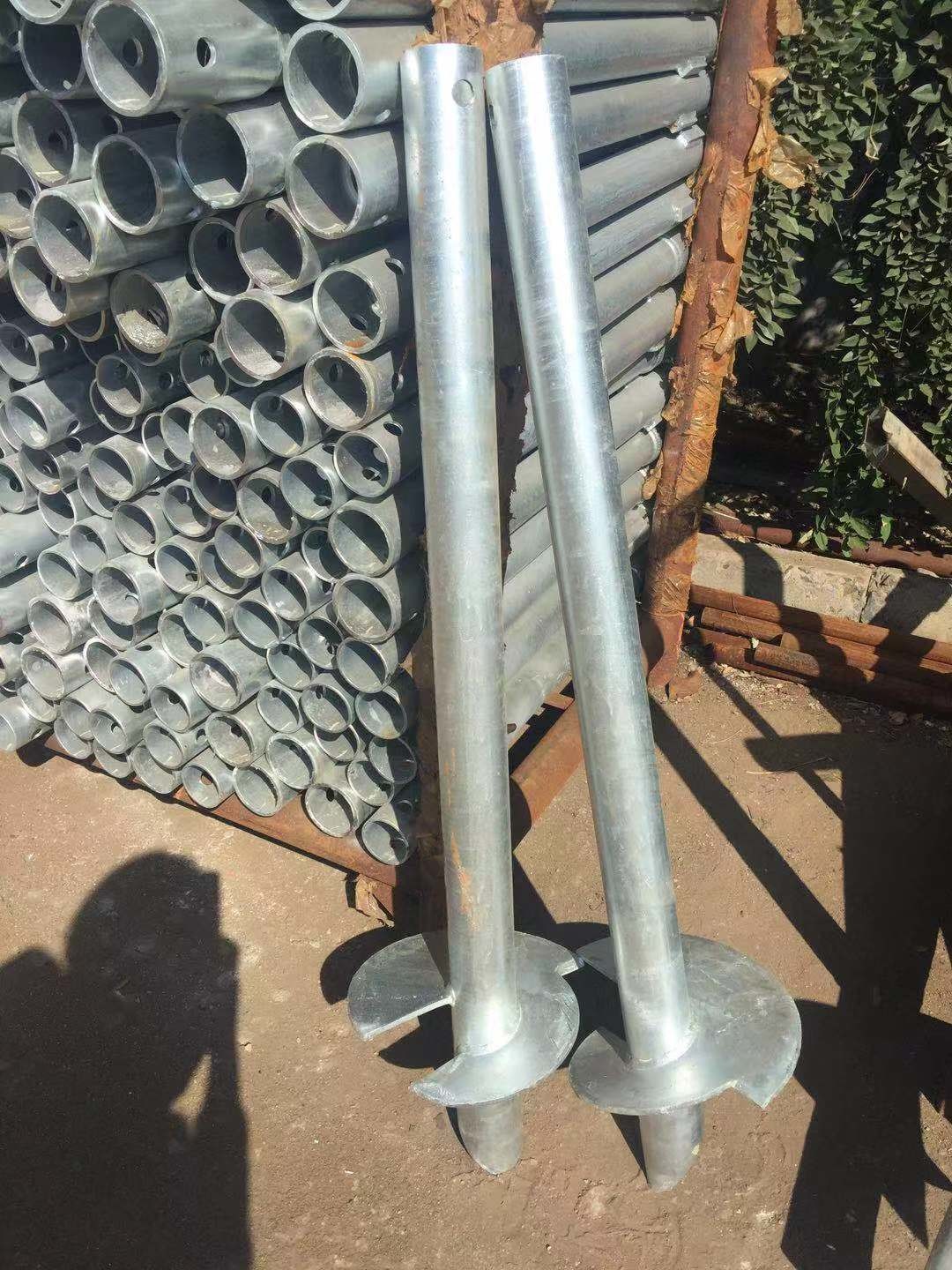

    Here are the pictures of the helix anchor

    Other types of helix anchor:



    Packing pictures: packing size and quantity depends on the rod and plate diameter


    >>>Advantage

    1. Raw material comes from tope 10 Steel Companies in China.

    2. Sample for confirm first before bulk production.

    3. QC.Testing report is compulsory before each dispatch.

    4. ISO, SGS certify our quality.

    5. 1 20ft container can be shipped within 25 days.

    6. 24 hours on line service for global markets.

    7. 12 sales consultant with 5 documents assiatant focus on solving customers' different problems in a high efficiency.

    >>>FAQ:

    1 what’s your payment term

    T/T, LC, PayPal, Westunion, Money Gram

    2 How long is your delivery time?

    3-5 days for sample, delivery time of mass goods is upon quantity.

    3 Where is factory located?

    Qingdao, Shandong,China, 20 mins away from Liuting Airport.

    4 Do you have certificate?

    We have ISO, SGS, TS16969 Certificate

    5 Can I get a sample first?

    Sample is free, but customer pay for express fee.
