    Overhead Line Cable Suspension Clamp Straight Guy Clamp Carriage Clamping Bolted

    Ask Lasest Price
    Brand Name : NTS
    Model Number : NTS169
    Certification : ISO9001
    Price : as discussed
    Supply Ability : 50000pcs per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Overhead Line Cable Suspension Clamp Straight Guy Clamp Carriage Clamping Bolted

    Overhead Line Cable Suspension Clamp Straight Guy Clamp Carriage Clamping Bolted



    Decscription:

    • Rolled from carbon steel with straight parallel grooves that will not damage strand

    • The clamping bolts have special shoulders to prevent turning when the nuts are tightened

    • Constructed of high quality steel, hot-dip galvanized

    Deadend Hardware Overhead line Straight 6462 5/8 carriage clamping bolted guy clamp

    • Guy clamp with three 5/8" diameter bolts.

    • Clamp is 4" long.

    • Parallel grooves trap strand tightly without marring.

    • Each bolt has a shoulder to prevent turning while tightening.

    • Hot dip galvanized.

    APPLICATION:

    • Parallel grooves trap strand tightly without marring. Plate halves align evenly for easy application. Each bolt has a shoulder to prevent turning while tightening.


    • Features straight parallel grooves for greater clamping area without damage to guy strand. Bolts have shoulders to prevent turning when nut is tightened. Alternate bolts are reversed for wrench clearance


    SIZE:
    Main specifications for our guy clamp:

    TYPELengthWidthProduct FinishMaterialNoteWeightAccommodates
    Strand Sizes
    Offset 64093 1/4"1 1/2"Galvanized, ASTM A-153SteelTwo 1/2" Carriage Clamping Bolts1.32 lbs3/16" to 5/16"
    Offset 64104" (102 mm)1 5/8"Galvanized, ASTM A-153SteelTwo 5/8" Carriage Clamping Bolts1.69 lbs5/16" to 1/2"
    Straight 64483 3/8"1 9/16"Galvanized, ASTM A-153SteelTwo 1/2" Carriage Clamping Bolts1.18 lbs1/4" to 7/16"
    Straight 64494" (102 mm)1 9/16"Galvanized, ASTM A-153SteelThree 1/2" Carriage Clamping Bolts1.59 lbs1/4" to 7/16"
    Straight 64506" (152 mm)1 9/16"Galvanized, ASTM A-153SteelThree 1/2" Carriage Clamping Bolts2.12 lbs1/4" to 7/16"
    Straight 64606" (152 mm)2 1/8"Galvanized, ASTM A-153SteelThree 5/8" Carriage Clamping Bolts4.05 LBS3/8" to 5/8"
    Straight 64616" (152 mm)1-21/32"Galvanized, ASTM A-153SteelThree 5/8" Carriage Clamping Bolts2.4 lbs5/16" to 1/2"
    Straight 64624" (102 mm)1 21/32"Galvanized, ASTM A-153SteelTwo 5/8" Carriage Clamping Bolts1.74 lbs5/16

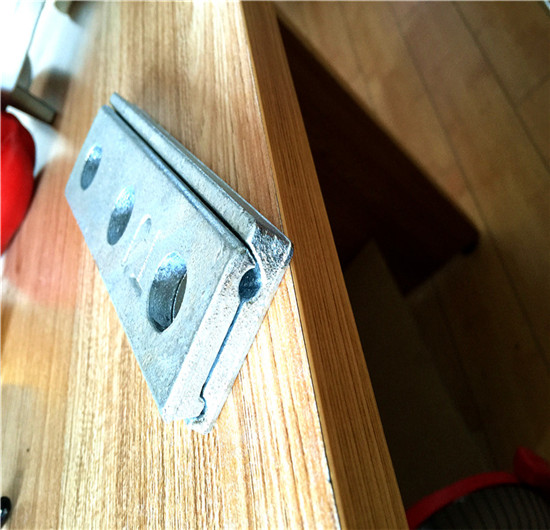

    PICTURE VIEW:



    Packaging & Shipping

    1. Packing type:carton or wooden case , also be packaged according to customer requirements.

    2. Modes of transportation:by sea ,by air or land transportation, Of course, a small amount can also by Express.


    Name: Figure 8 cable suspension clamp J0105

    Material: Carbon steel

    Finish: Hot Dip Galvanized per ASTM A 153 cable suspension clamp

    Bolt Size: 5/8” cable suspension clamp

    Plate Size: 6”X1-21/32” cable suspension clamp

    Feature: Used to form guy loops that attach to anchor rods. Guy Clamp, bolted guy clamp, three bolts guy clamp, deadend hardware, dead end hardware, J931, 6461, 6462, 6460, alliedbolt 505
