    Plain Surface Threaded Steel Rod / High Strength Rod Formwork System Taper Tie

    Ask Lasest Price
    Brand Name : NTS
    Model Number : NTS255
    Certification : ISO9001 CE
    Price : as discussed
    Supply Ability : 50000per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Plain Surface Threaded Steel Rod / High Strength Rod Formwork System Taper Tie

    hot dip galvanized high tensile strength underpinning foundation helical pier screw pile


    Pro

    Product Description:

    Concrete Support Systems Euro Thread Standard Taper Tie can be used with any form system. These pass thru taper ties are machined from solid high strength steel rods. The threads of the taper tie are a standard full round Euro Thread and the end is machined into a square to permit the application of a wrench for product removal.

    16 in x 15 mm Standard Taper Tie

    Part Number: 108.015.0016
    PHYSICAL MEASUREMENTS
    Thread Diameter5/8 in / 15.00 mm
    Taper Length16 in / 406 mm
    DiameterMAX: 7/8 in MIN: 3/4 in
    MAX: 20.00 mm MIN: 19.20 mm
    Overall Length41 in / 1041 mm
    Weight11.8 lbs / 5.31 kg
    APPLICATIONS
    Working Load18.8 kips / 83.70 kn
    Ultimate Load37.6 kips / 167.40 kn

    24 in x 15 mm Standard Taper Ties

    Part Number: 108.015.0024
    PHYSICAL MEASUREMENTS
    Thread Diameter5/8 in / 15.00 mm
    Taper Length24 in / 610.00 mm
    DiameterMAX: 7/8 in MIN: 3/4 in
    MAX: 20.00 mm MIN: 19.20 mm
    Overall Length45 in / 1143.00 mm
    Weight13.5 lbs / 6.08 kg
    APPLICATIONS
    Working Load18.8 kips / 83.70 kn
    Ultimate Load37.6 kips / 167.40 kn

    32 in x 15 mm Standard Taper Tie

    Part Number: 108.015.0032
    PHYSICAL MEASUREMENTS
    Thread Diameter5/8 in / 15.00 mm
    Taper Length32 in / 813 mm
    DiameterMAX: 7/8 in MIN: 3/4 in
    MAX: 20.00 mm MIN: 19.20 mm
    Overall Length53 in / 1346.00 mm
    Weight15.2 lbs / 6.84 kg
    APPLICATIONS
    Working Load18.8 kips / 83.70 kn
    Ultimate Load37.6 kips / 167.40 kn

    16 in x 20 mm Standard Taper Ties

    Part Number: 108.020.0016
    PHYSICAL MEASUREMENTS
    Thread Diameter7/8 in / 20.00 mm
    Taper Length16 in / 406.00 mm
    DiameterMAX: 1 1/4 in MIN: 1 in
    MAX: 31.75 mm MIN: 25.40 mm
    Overall Length41 in / 1041.00 mm
    Weight4.65 lbs / 2.09 kg
    APPLICATIONS
    Working Load37.5 kips / 166.95 kn
    Ultimate Load75.0 kips / 333.90 kn

    24 in x 20 mm Standard Taper Tie

    Part Number: 108.020.0024
    PHYSICAL MEASUREMENTS
    Thread Diameter7/8 in / 20.00 mm
    Taper Length24 in / 610 mm
    DiameterMAX: 1 1/4 in MIN: 1 in
    MAX: 31.75 mm MIN: 25.40 mm
    Overall Length45 in / 1143.00 mm
    Weight5.81 lbs / 2.61 kg
    APPLICATIONS
    Working Load37.5 kips / 166.95 kn
    Ultimate Load75.0 kips / 333.90 kn

    32 in x 20 mm Standard Taper Ties

    Part Number: 108.020.0032
    PHYSICAL MEASUREMENTS
    Thread Diameter7/8 in / 20.00 mm
    Taper Length32 in / 813.00 mm
    DiameterMAX: 1 1/4 in MIN: 1 in
    MAX: 31.75 mm MIN: 25.40 mm
    Overall Length53 in / 1346.00 mm
    Weight7.0 lbs / 3.15 kg
    APPLICATIONS
    Working Load37.5 kips / 166.95 kn
    Ultimate Load75.0 kips / 333.90 kn

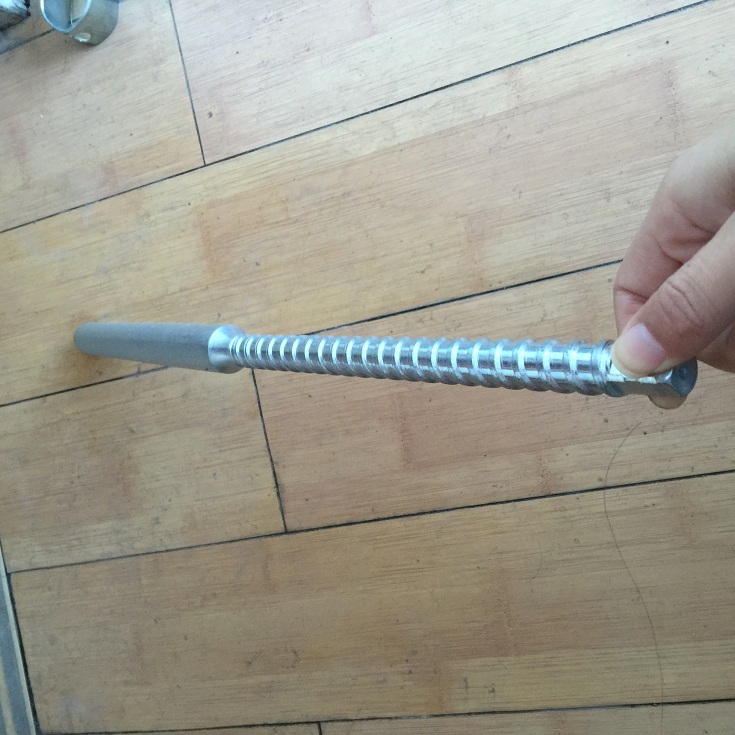

    Here are the pictures of the taper tie


    >>>Advantage

    1. Raw material comes from tope 10 Steel Companies in China.

    2. Sample for confirm first before bulk production.

    3. QC.Testing report is compulsory before each dispatch.

    4. ISO, SGS certify our quality.

    5. 1 20ft container can be shipped within 25 days.

    6. 24 hours on line service for global markets.

    7. 12 sales consultant with 5 documents assiatant focus on solving customers' different problems in a high efficiency.

    >>>FAQ:

    1 what’s your payment term

    T/T, LC, PayPal, Westunion, Money Gram

    2 How long is your delivery time?

    3-5 days for sample, delivery time of mass goods is upon quantity.

    3 Where is factory located?

    Qingdao, Shandong,China, 20 mins away from Liuting Airport.

    4 Do you have certificate?

    We have ISO, SGS, TS16969 Certificate

    5 Can I get a sample first?

    Sample is free, but customer pay for express fee.
