    Durable Power Line Fittings One Bolt Suspension Guy Clamp Parallel Cable Strand Clamp

    Ask Lasest Price
    Brand Name : NTS
    Model Number : NTS174
    Certification : ISO9001
    Price : as discussed
    Supply Ability : 50000pcs per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Durable Power Line Fittings One Bolt Suspension Guy Clamp Parallel Cable Strand Clamp

    hot dip galvanzied One Bolt Suspension Guy Clamp Parallel Cable Strand Clamp for deadend hardware

    Decscription:

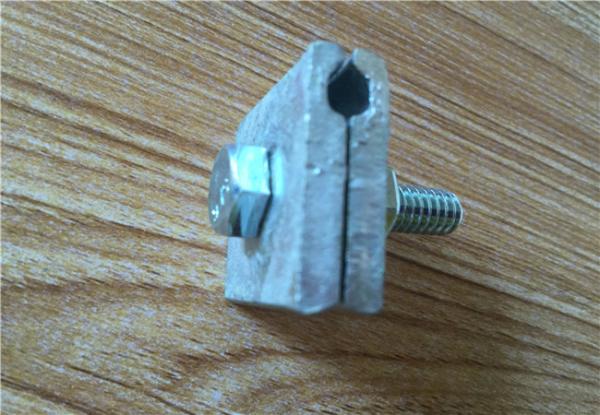

    1/2" ONE BOLT GUY CLAMP 1-7/16" X 1-9/16" PLATES

      • Used to form guy loops that attach to anchor rods.
      • Parallel grooves accept strand without marring.
      • Plate halves align evenly for ease of installation.
      • Plate length is 1-7/16" and plate width is 1-9/16".
      • Strand sizes accommodated are 3/16" (2.2 M) - 3/8" (10 M).
      • Comprised with 2 plates and one 1/2" X 1-1/2" Carriage Bolt with one Regular Square Nut.
      • Hot dip galvanized to meet ASTM Specification A153.
    • Main specifications for our guy clamp:


      TYPELengthWidthProduct FinishMaterialNoteWeightAccommodates
      Strand Sizes
      Offset 64093 1/4"1 1/2"Galvanized, ASTM A-153SteelTwo 1/2" Carriage Clamping Bolts1.32 lbs3/16" to 5/16"
      Offset 64104" (102 mm)1 5/8"Galvanized, ASTM A-153SteelTwo 5/8" Carriage Clamping Bolts1.69 lbs5/16" to 1/2"
      Straight 64483 3/8"1 9/16"Galvanized, ASTM A-153SteelTwo 1/2" Carriage Clamping Bolts1.18 lbs1/4" to 7/16"
      Straight 64494" (102 mm)1 9/16"Galvanized, ASTM A-153SteelThree 1/2" Carriage Clamping Bolts1.59 lbs1/4" to 7/16"
      Straight 64506" (152 mm)1 9/16"Galvanized, ASTM A-153SteelThree 1/2" Carriage Clamping Bolts2.12 lbs1/4" to 7/16"
      Straight 64606" (152 mm)2 1/8"Galvanized, ASTM A-153SteelThree 5/8" Carriage Clamping Bolts4.05 LBS3/8" to 5/8"
      Straight 64616" (152 mm)1-21/32"Galvanized, ASTM A-153SteelThree 5/8" Carriage Clamping Bolts2.4 lbs5/16" to 1/2"
      Straight 64624" (102 mm)1 21/32"Galvanized, ASTM A-153SteelTwo 5/8" Carriage Clamping Bolts1.74 lbs5/16" to 1/2"
      Strait 79012 1/2"Galvanized, ASTM A-153Steel5/8" Mounting Bolt0.66 lbs1/4" to 7/16"
      Angled 7902L7" (178 mm)Galvanized, ASTM A-153Steel5/8" Mounting Bolt2 lbs1/4" to 7/16"
      Angled 7902R7" (178 mm)Galvanized, ASTM A-153Steel3/4" Mounting Bolt1.97 lbs1/4" to 7/16"
      Strait 79035 3/4"Galvanized, ASTM A-153Steel5/8" Mounting Bolt1.83 lbs1/4" to 7/16"
      Strait 7903L5 3/4"Galvanized, ASTM A-153Steel5/8" Mounting Bolt1.57 lbs1/4" to 7/16"
      Angled 79045 3/4"Galvanized, ASTM A-153Steel3/4" Mounting Bolt1.74 lbs1/4"

    APPLICATION:

    • Parallel grooves trap strand tightly without marring. Plate halves align evenly for easy application. Each bolt has a shoulder to prevent turning while tightening.

    • Features straight parallel grooves for greater clamping area without damage to guy strand. Bolts have shoulders to prevent turning when nut is tightened. Alternate bolts are reversed for wrench clearance

    • Standard Packaging Information

      Part #DescriptionPkg QtyPkg Per CartonCarton Weight
      50511/2" ONE BOLT GUY CLAMP 1-7/16" X 1-9/16" PLATES50132
