    Socket Drive screw anchor for canopies protective

    Ask Lasest Price
    Brand Name : NTS
    Model Number : NTS63
    Certification : ISO9001 CE
    Price : as discussed
    Supply Ability : 5000 per month
    Delivery Time : 35 days
    • Product Details
    • Company Profile

    Socket Drive screw anchor for canopies protective

    10000ft/lb socket drive power installed helix screw anchors

    Product Information


    Key Specifications/Special Features:

    • Material: Steel Q345

    • Surface treatment: Paint

    • Size: 8" 10" 12" 14" 16" 18"

    • Type: Socket internal drive, power installed socket anchor

    • Process: FORGED AND WELDED

    • The screw anchor for application through class 2 soils and to 160KN holding strength. These screw anchors also can be installed to a depth of 4m with either a boom suspended torque mortor line truck or rack type digger truck.

    • Screw Anchor Assembly consists of a helix-hub assembly, anchor rod, and eye nut.

    • The helix size (diameter) is selected for the required holding strength.

    Size and Specification for socket anchor ,socket screw anchor ,helix screw anchor ,ground anchor
    SIZE
    THREAD
    RATE
    TYPE
    200 8"
    M16 M24
    10000 FT.LBS TOR, 160KN ON THE THREAD
    SOCKET
    250 10"
    M16 M24
    10000 FT.LBS TOR, 160KN ON THE THREAD
    SOCKET
    350 14"
    M24
    10000 FT.LBS TOR, 160KN ON THE THREAD
    SOCKET
    400 16"
    M20
    10000 FT.LBS TOR, 160KN ON THE THREAD
    SOCKET
    450 18"
    M24
    10000 FT.LBS TOR, 160KN ON THE THREAD
    SOCKET

    Customizing is welcome!

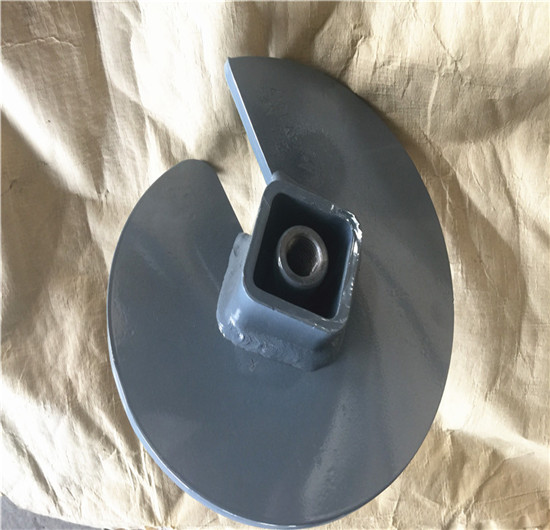

    Here are the pictures of the socket screw anchor


    Quality Inspection:


    Other types of helix anchor:





    PACKING OF THE SOCKET ANCHOR ,EARTH ANCHOR
