DIN1142 standard wire rope clamp wire rope clip for rigging hardware

Description:

This DIN1142 wire rope clip or DIN1142 wire rope clamp for used for cable and wire strand.

The body is made of malleable iron steel by casting process ,while the U bolt is made of forging

The nut is flange nut to make it special to other wire rope clamps

This wire rope clamp is mainly used for European countries who are in range of agricultural anti hail system and building

The surface is yellow zinc plated

Sizes are available: from 3mm 5mm 6mm 8mm 10mm 13mm 16mm and so on

Other standards of wire rope clamp :

there are DIN1480 wire rope clip,DIN1142 ,JIS type,US type drop forged ,DIN741 wire rope clip ,A type wire rope clip

Process can be forged or casted .Depends on the loading requirement and price

Size:

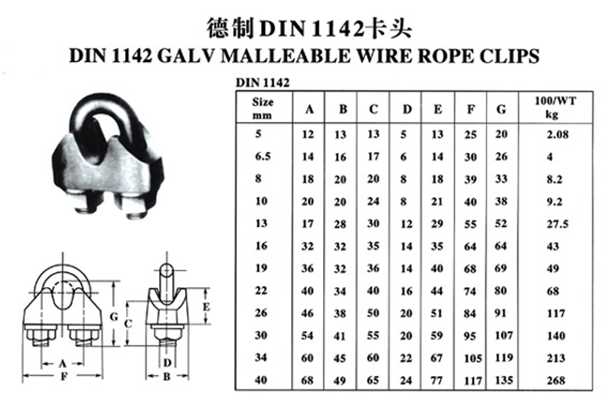

DIN1142 GALV MALLEABLE WIRE ROPE CLIPS

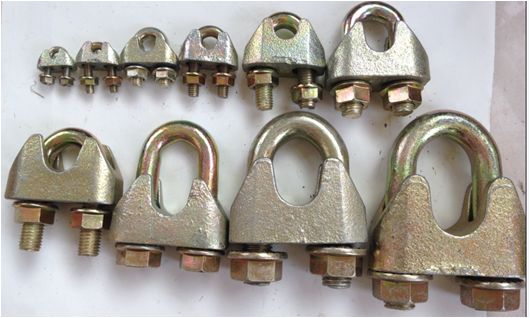

Picture View:

Our Factory show:

We are factory and we have 20 years experience to produce all kinds of shackles.We do OEM products and we owned our mould designer

send Email to us if you are interested in our products

Qingdao New Taosheng Metal Products Co.Ltd  foundate in 1998 Year with 160 workers .located in Qingdao City,Shandong Province China ,and the close to the biggest port of Qingdao Sea port .

We are close to the Qingdao Airport 30 minutes by car .

The factory covers an area of 10,000 square meters and its architectural area is 5,000 square meters .It has over 160 staff , including 5 engineers, 15 specialized Technician.Two forging workshops,one mold workshop. Our engineer can design the drawing by CAD ,solidworks to calculating the weight of the drawing.

Our Mainly equipments are:1000T/630T/400T/300T/160T forging machine,air hammer,heating furnace,rolling machine,tapping machine,blasting machine and so on.Also Our factory have relationship with heat treatment factory,milling factory and galvanizing plant,quality can enjoying good reputation in world market.

We are  professional factory and Manufacturer to make rigging hardware, electric power fittings, concrete forming hardware ,agricultural anti hail accessory ,aluminum die casting and other OEM etc, made of forging ,stamping ,machining and casting

and also we have welding machine and CNC machining workshop to do more process Main products comprise Building Concrete Products(coil rod ,coil insert ,coil tie ,coil cone ,jack ,nut ,plate,scaffolding accessory,foot anchor ,lifting anchor ) Poleline accessories, Powerline fittings( like anchor rod,ground screw anchor ,no wrench anchor rod,screw anchor ,helix anchor rod ,helix pile ), anti hail accessory (wire tensioner,anchoring clamp,wire tender,wire collar wire rope ,wire strand , anti hail net,wire anchor clamp ,wire stretcher),Rigging hardware(shackle, turnbuckle ,and wire rope clip) other OEM items.

Our main aim is to develop our factory to a international OEM company

Our Service, Your Safety” , “Customers Demand, Our Pursuit .To Provide the most suitable product and pragmatic services is our firm belief.

QUALITY, SINCERITY, EFFICIENCY and SERVICE. Sincerely wish long-term cooperation between you and us. Welcome to our factory for a visit.
